Our business idea:Honesty,Pragmatic,Innovation our service tenet :Quality first,Customers first Our Value:Make it fast to save client time, make it easy to save client cost, make it right to save
9 Years
| Ask Lasest Price | |
| Brand Name : | xunzhuo |
| Model Number : | aws e6013 e6011 e7018 |
| Certification : | CCS LR ABS GL BV DNV NK BKI KR CWB CE DB TUV |
| Price : | USD600-800/ton |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000tons per month |
| Delivery Time : | 5-8 work days |
Name:AWS welding electrode e 6011/ AWS A5.E6011 Welding Rod Manufacturer
Description- welding rod e 6011
AWSE6011 is a kind of electrode with low-hydrogen potassium type coating. AC/DC+. All-position welding. soft stable arc, good fluidity and removability of slag, smooth appearance . The deposited metal has excellent mechanical properties. Excellent crack-resistance and good low temperature impact toughness.
Applications- mild steel welding electrode - mild steel w
Used for welding medium-carbon steel and low-alloy steel structures,such as 16Mn, 09Mn2Si and A, B, D and E steel for ships, and also used for welding on thick plates and hard-to-weld carbon steel structures.
Technical reference
| Chemical Compossition of Deposited Metal(%) | ||||||||||
| GV=Guarantee Value | ||||||||||
| Test Item | C | Mn | Si | S | P | Ni | Mo | Cr | V | Mn+Ni+Mo+Cr+V |
| GV | ≤0.12 | ≤1.60 | ≤0.75 | ≤0.035 | ≤0.040 | ≤0.30 | ≤0.30 | ≤0.20 | ≤0.08 | ≤1.75 |
| Typical | 0.07 | 1.22 | 0.45 | 0.015 | 0.011 | 0.04 | 0.03 | 0.06 | 0.04 | 1.39 |
| Mechanical Properties of Deposited Metal | ||||||||||
| GV=Guarantee Value | ||||||||||
| Test Item | T.S (Mpa) | Y.S (Mpa) | EL. (%) | CVN (J) | ||||||
| GV | σb≥490 | σs ≥ 400 | δ5 ≥ 22 | ≥ 47(-20°C) | ||||||
| Typical | 520-580 | ≥410 | 25-33 | 80 | ||||||
| Diffusible Hydrogen Content in Deposited Metal: ≤4.0 ml/100g(Weld Metal) | ||||||||||
| X-ray Inspection: I | ||||||||||
| Diameter, Length & Recommended Current (AC/DC+) | ||||||||||
| Dia mm(in) | φ2.6(3/32) | φ3.2(1/8) | φ4.0(5/32) | φ5.0(3/16) | ||||||
| Length mm(in) | 350(14) | 350(14) | 400(16) | 400(16) | ||||||
| Flat (A) | 55-85 | 90-140 | 140-190 | 190-250 | ||||||
| V-UP, OH (A) | 50-80 | 80-130 | 110-170 | 160-210 | ||||||

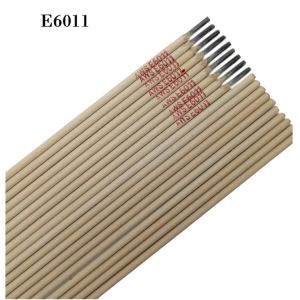

Product Show
welding rod e 6011
Advantage:
1. Stable arc, less splash
2. Shaped good appearance
3. Easy for removal of slag layer
4. Easy for striking arc and restriking arc.
5. Operable with low amperages on sheet metal
6. Slag control accommodates vertical down welding
Package:
Usually one 20ft container can load 1250 cartons, 25 MT. If the
shipping line agrees, it can be loaded into 1350 cartons, 27 MT.
One MT is about 0.6 CBM, one carton is 20kg.
Usually the package is following:
Size: 2.5mm*300mm,
package: 2.5 kg/inner box, 8 boxes/ carton=20kg,
Size: 3.2mm*350mm,
package: 5.0 kg/inner box, 4 boxes/ carton=20kg,
Size: 4.0mm*400mm,
package:5.0 kg/inner box, 4 boxes/ carton=20kg.
Inner box is a shrink-wrapped cardboard box.
Moreover, we can do it on pallets as client’s request: 1MT/Pallet
or 2MT/ Pallet.
Attention:
1 Generally welding electrodes don't need bake before welding.
2 If damped, the electrode should be baked for 0.5-1.0 hour at the
temperature of 150-170 ℃ before welding.
|
|
