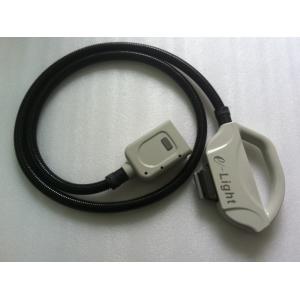

Product:E-LIGHT (IPL+RF)

· Model Number: HTR107 B

· Description:

· HOW IT WORKS
ELight three advanced technologies: Bipolar Radio frequency+IPL+skin contact cooling.When the three are united in one treatment, wonderful treatment experience and result can be expected.

The energy of Radio Frequency can reach the middle and lower layer of the skin and heat up tissue, thus, lower energy be applied during the IPL treatment. Uncomfortable feeling during the IPL treatment

will be decreased significantly and the same even better result can be expected. In addition, cooling system involved in Elight can also ease the uncomfortable feeling.
The absorbing of the energy of radio frequency is not concerned with melanin. So, the ELight system can get good result on the soft or thin hair

so as to decrease the risk caused by traditional IPL treatment.

Application:
1. skin tightening: skin lifting, improves flexibility and tone of skin;
2. Skin rejuvenation: fine wrinkles around eyes, forehead, lip, neck, pigments, freckles, vascular lesions (telangiectasis) removal, skin whitening, pore shrinking, change large hair pores;
3. Hair removal for all skin types including tanned skin, remove hair from face, upper lip, chin, neck, chest, arms, legs and bikinis area
4,Acne removal: improve the situation of oily skin; kill acne bacilli.

Features:
1.Colorful and large touch screen: 8 inch of color touch screen, brief to operate and use
2.Combines three advanced technologies: the perfect combination of Biopolar radio frequency+IPL+skin contact cooling to decrease the risk of burn and uncomfortable feeling for patient during treatment and bring unexpected treatment effect
3.Integrative good cooling system: the refrigeration plays a decisive role for the performance of whole equipment, high-level efficiently cooled by water refrignation+semi-conductor cooling +air cooling, continuously work all day long without stopped
4.RF energy can be applied to any type of skin, No side effect.

Specification:
For IPL
1. Light source:Intense Pulsed Light
2. Wavelength: 560nm-1200nm light &RF output
695nm-1200nm light&RF output
3. Energy Density: 10-50J/cm2
4. Pulse number: 1-6pcs
5. Pulse width: 1-10ms
6. Pulse delay: 5-100ms
7. Frequency: 1-4Hz
8. Spot size: 8*34mm, 10*45mm (selectable)
For RF
1. Radio Frequency: 1MHz
2. Output mode: Biopolar
3. RF power: 5-100W
4. RF output time: 0.2-3.5s
For Main machine:
1. Screen Display: 8 inch colorful touch screen
2. Cooling system: water refrigeration + semi-conductor cooling+air cooling
3. Physical Dimensions:40×30×100cm
4. Net weight: 50 kgs
5. Power supply: AC110V/10A/ 60Hz, AC220V/5A/50Hz

Company Profile

1.Our history:

Established in 2001, Hunan Xunzhuo Imp.&Exp. Co., Ltd specialized in advanced laser and Intense light technology in medical and beauty industry. Like IPL series, SHR, 808nm diode laser, Co2 fractional laser , fractional RF ,HIFU and hair re-growth laser etc.we Start company with only three person, but now,we have become leading Aesthetic Laser Equipment supplier.

2.Our factory:

Located in Yuelu industry ,Changsha ,China. Xunzhuo own head office and factory (2300 m2) and over 100 staffs(workshop,R$Dteam,AfterService,entertainment). Specially, we make a well organized and innovative R&D team of 35 engineers, to provide OEM&ODM, training, technology support and maintenance all-round service.

3.Our Products:

Our products, which are highly effective ,safe and easy to use. We are commited to strive to be best manufacturer and to provide the best service and quality to our customers. We have sold our products worldwide, For example, Australia, spain, America, Korea, Japan, Russia, india Russia,Dubai

4. Product Application:

With development of many years, we have researched many Aesthetic laser equipment. They are used in Laser hair removal,skin rejuvenation, Laser tattoo removal, Laser Pigment removal, acne scar removal, face lifting, facial vascular removal, vein removal, and low level laser hair regrowth ,fat reduction, RF skin rejuvenation, Aesthetic Procedures laser painless, body shaping…

5.Our certificate:

To ensure that our products are truly world class, safe and effective.,all products are designed and manufactured strictly in accordance With ISO13485 quality system and With CE certification request.

6.Our service:

Keep leading in technology and service is always our aim. Your trust and support make us success.our capable R&D team will continute to develop more user friendly product for our partner, OEM/ODM is big advantage for distributor and partner. Supply 24 hours service all the time.

Xunzhuo will work hard constantly for supplying best product and after sale service.
